What’s Causing My Furnace’s High Limit Switch to Keep Tripping?

Is your furnace rapidly cycling between intense heat and arctic chills? That’s a sign the high limit switch is stuck in overdrive, trying to rein in an overheating system. This critical component monitors combustion temperatures and chokes off fuel and air if levels breach danger zones.

A high limit switch stuck on override means an underlying issue is forcing constant emergency mode. Whether it’s airflow blockages, faulty parts, or combustion chaos – you need to neutralize the root cause fast. Ignoring persistent overheating risks cracked heat exchangers leaking carbon monoxide, fried components, and even potential house fires. It’s time to diagnose the problem before your heating system’s core gets damaged beyond repair.

Understanding the High Limit Switch

That unassuming high limit switch is the vital guard shielding your furnace from overheating disasters. When temperatures flare out of control, this thermal watchdog kicks into lockdown mode.

Unlike standard thermostats that regulate ambient temperatures, this switch solely monitors conditions inside the scorching combustion chambers. As heated air cycles through, sensors closely track each increase until readings breach coded maximum thresholds. The switch then instantly cuts all power to the gas valve and blowers – an abrupt full-stop before failures can propagate.

Isolated from new fuel sources, that intense heat pocket starts dissipating until temperatures subside below the reset point. Only then does the high limit cautiously allow furnace activity to resume… until the next overheat inevitably repeats.

The Irreplaceable Safeguard

While the constant stopping and starting may seem disruptive, trust that the high limit prevents far worse consequences. Without this shutdown enforcer, overheated exhaust could warp heat exchangers, vent gas leaks into the air supply, cause motors to burn out, or progressively melt entire sections.

So some inconsistent heating beats allowing an unconstrained, destructive overheating spiral. Rather than a nuisance, appreciate how selflessly this sentry bears responsibility as your last-resort thermal regulator. When interior temperatures skyrocket, you need it instituting emergency shutdowns – preventing your household from searing, smoke-choked fallout.

Your high limit switch neutralizes overheating through decisive protocols before situations combust out of control. It’s the silent guardian defending your furnace’s integrity by any means necessary. Respect this vital safeguard’s life-preserving role.

The Phenomenon of Short Cycling

Before addressing the high limit’s antics, we must examine the common culprit behind overheating furnaces – the loathed short cycling phenomenon.

Short cycling is your furnace tripping on and off excessively in abnormally short bursts rather than through full, even cycles. These drastic start/stop convulsions create intense temperature swings, straining every component.

In a properly operating furnace, the burners fire for an extended 10-15 minute cycle to deliver consistent heated air until the desired temp is reached, then shut off until more heat is needed.

With short cycling, that cycle is whiplashed into chaos – operating for mere minutes before overheating triggers shutdown of everything. Burners flare like strobes. Blower motors rapidly accelerate and decelerate. Just as it heats up…power cuts, resetting the cycle.

This continual start/stop cyclone creates punishing heat stress, fuel waste, and excessive component wear.

The Vicious Override Cycle

Plummeting temperatures after premature shutdowns goad high limit switches into emergency overriding mode. As it plunges back into freezing levels, the switch frantically re-fires the furnace to create more hot air.

But each short-cycle restart creates more excessive heat buildup, triggering the shutdown again. The switch can never win – endlessly reset by the cold air its shutoffs create.

Once entrenched, high limit overrides are unavoidable. The extreme temp flux from arcing between extremes wastes energy, brutally punishing components until cracked heat exchangers, blown motors, or systemic burnout occurs.

Breaking the Cycle

Clearly, short cycling prompts high limit haywire – the erratic temps and component strain are exactly what these safety switches prevent through cold air resets.

To stop constant tripping, the core short cycling issue must be resolved first by fixing airflow restrictions, recalibrating sensors, replacing worn parts, etc.

Once balanced, steady heat cycles resume without hot/cold extremes, high limit overrides naturally cease as the furnace operates within safe temperature ranges. Calm the short cycling storms, and the high limit fury settles.

Common Causes for the High Limit Switch Tripping

We’ve explored how the vicious cycle of short cycling can goad high limit switches into a frenzy of emergency overrides as temperatures wildly fluctuate. But this notorious heating pattern represents just one of the potential culprits that could be spurring your furnace to dangerously overheat beyond safe thresholds.

There are several other common underlying issues that homeowners need to be aware of when attempting to get to the root of persistent high limit switch tripping. From component failures and airflow restrictions to systemic installation problems – any number of these factors can create hazardous overheating situations forcing that thermal watchdog into lockdown mode.

Dirty or Faulty Flame Sensor

One of the most frequent culprits behind high limit switch trips is issues with the flame sensor. This critical component monitors the burners to confirm they’ve properly ignited before allowing the gas valve to remain open and fuel to flow. However, residue buildup like soot and oxides can impair the sensor’s ability to accurately detect flame presence.

It may give false positive readings that the burners lit when they didn’t, causing the gas valve to stay open as unburnt gas fills the combustion chamber. When ignition finally occurs, this excessive gas buildup creates an intense flare-up that dangerously overheats the system and trips the high limit switch. The cycle then repeats with the next restart until the flame sensor is cleaned or replaced.

Lack of Adequate Airflow

Furnaces require sufficient airflow through the system to transfer out the heat produced during combustion. Restrictions that obstruct airflow can cause temperatures to rapidly build up inside components with nowhere for the thermal energy to properly dissipate.

The main sources of airflow issues are a failing air circulation blower lacking enough velocity, or excessively clogged air filters choking off the airstream. With heat bottlenecked rather than circulating out, temperatures climb until the high limit kicks in as an emergency cooling measure – only for the problem to repeat with the next heating cycle restart.

Venting Obstructions and Restrictions

For combustion gases to safely exhaust rather than backdrafting into the air supply, furnaces rely on proper venting through an exhaust flue or pipework. Any obstructions blocking or restricting this venting path forces excessive heat and fumes to be trapped inside the system rather than expelling it outside. This buildup can quickly overwhelm the furnace until the high limit switch shuts it down.

Cracked Heat Exchanger

Cracks or leaks in the heat exchanger – the component responsible for transferring thermal energy from the combustion chamber into the air circulation – represent another major red flag. Rather than contained hot air cycling out, excess heat floods into other areas of the furnace housing once the exchanger’s integrity is compromised. Overheating forces the high limit switch to kick in before components are damaged.

Faulty Circuit Board Controls

The fan control board regulates operation of the circulation blower, while the limit control board monitors temperatures and manages the high limit switch engagement. Electrical problems or faults with either board can prevent the blower from spinning at appropriate speeds for airflow needs, or cause the high limit switch to activate at improper temperature thresholds.

Improperly Sized or Installed System

If a furnace is undersized compared to the heating needs of a home, it may frequently run for far longer periods trying to satisfy thermostat demands. This excessive runtime overstresses components until temperatures breach high limit thresholds and protective overrides occur. Undersizing also commonly occurs due to improper installation without accounting for home size requirements.

Other installation failures like improper gas pressure, inadequate clearances, and obstructed maintenance access can also impair system operations in ways that routinely trigger high limit switch engagement as temperatures rise unchecked.

While dirty flame sensors and airflow restrictions represent some of the most common underlying causes, homeowners need to be prepared to troubleshoot any of these potential high limit switch tripping culprits. Letting overheating issues persist not only damages furnace components, but poses potential safety hazards from carbon monoxide leaks or even fire risks.

Verifying proper component operation like the flame sensor, blower motor, and venting is crucial. But even a comprehensive cleaning and system checkup may indicate more complex repair needs like replacing a cracked heat exchanger or improperly sized furnace if high limit switch trips continue frequently. Resolving the root issue is essential for restoring safe, efficient heating – and granting that high limit switch some much-needed rest and relaxation away from emergency cooling duty.

Dealing with a Defective High Limit Switch

You’ve worked tirelessly to address all the potential root causes that could spur your furnace’s high limit switch into a frenzy of overheating shutdowns. The flame sensor has been degunked, airflow pathways cleared, and any other underlying temperature regulation issues thoroughly investigated.

But even after your comprehensive troubleshooting efforts, that ornery high limit gremlin stubbornly refuses to stand down – tripping at what seem like random intervals regardless of whether combustion conditions are within normal operating parameters. At this point, the unfortunate reality is you may simply be dealing with a defective high limit switch itself in need of replacement.

The Switch’s Window to Failure

While designed as a protective fail-safe, high limit switches inevitably succumb to the same mortal weakness as any other furnace component – gradual performance degradation over years of continual heating cycles. Constant temperature monitoring coupled with rapid cycling between scorching extremes and cold resets can’t help but incrementally strain these critical safety switches over time.

Microscopic deformities warp temperature sensor tunings as switches overheat past rated capacities. Electrical connectivity issues impair their governing circuit board control signaling. Intensive thermal shocks from rapid cycling expansions and contractions accelerate material fatigue of internal components. Dust, corrosion, and other environmental factors also slowly eat away at switch integrity.

In short, high limit switches have a finite operational lifespan – maxing out their temperature protection usefulness after years of dedicated furnace overheat prevention duty. Once they cross that practical obsolescence horizon, those previously reliable safety sentinels transform into glitchy, unpredictable liabilities just as likely to underreact and accidentally allow overheating as they are to overreact with unnecessary shutdowns.

Erring on the Side of Caution with Replacements

Any signs of high limit switch performance issues like intermittent tripping, improper activation temperatures, or visible damage signal it’s time to replace it. Don’t wait for total failure of this crucial last line of defense against overheating catastrophes.

Quick resets are impractical band-aids once the switch itself becomes unreliable. Priorities shift to replacement over temporarily restoring operation after minor overheating trips.

Capable DIYers can usually source new switches from the manufacturer and swap them following wiring instructions, setting proper activation temperatures. Less experienced homeowners should call HVAC pros who arrive with suitable replacement inventory for any furnace model.

Reputable techs provide useful supplementary services beyond just replacing the switch. They leverage diagnostic tools to confirm no other underlying temperature issues persist. Inspection cameras and airflow sensors can pinpoint blockages or cracks before component failure.

Having experts oversee the replacement process and ensure no other lurking problems prevents overheating issues from quickly resurfacing. This extends the new switch’s lifespan while optimizing the entire system for safer, more efficient operation.

So while an old switch gave its last full measure, its replacement, backed by professional oversight, ensures your furnace and home stay out of hot water.

Preventative Maintenance to Avoid Tripping

With a new high limit switch installed, take a moment to reflect on preventative maintenance. You don’t want this new safety sentinel constantly leaping into the overheating fray months from now.

Keeping your furnace operating within regulated temperatures means consistent care and upkeep – not just reactive repairs after issues escalate to override territory. An ounce of prevention gives your system the best chance at a long, productive life without relying on that thermal circuit breaker as a crutch.

The Value of Professional Maintenance

Just like seasonal car tune-ups ensure reliable performance, comprehensive furnace maintenance services are a crucial longevity investment. During these inspections, HVAC techs thoroughly assess every component involved in temperature regulation and overheat prevention.

They leak test fuel lines, scrutinize electrical components for degradation, verify sensor/switch calibrations, and confirm the new high limit switch accurately monitors temperatures across its full range.

But they don’t stop at existing components. Inspections also cover areas influencing overheating risks – checking airflow paths for obstructions, ductwork for leaks, and blower components for imminent failure that could exacerbate temperature control issues.

With experts proactively examining all potential overheat precursors, you leverage upfront due diligence to sidestep disastrous high-temperature situations before premature component failures. Professional maintenance ultimately protects your furnace’s longevity and household safety.

Steady Homeowner Habits

But preventative maintenance isn’t just occasional pro tune-ups. Responsible owners adopt parallel hands-on observation habits to keep systems running smoothly daily.

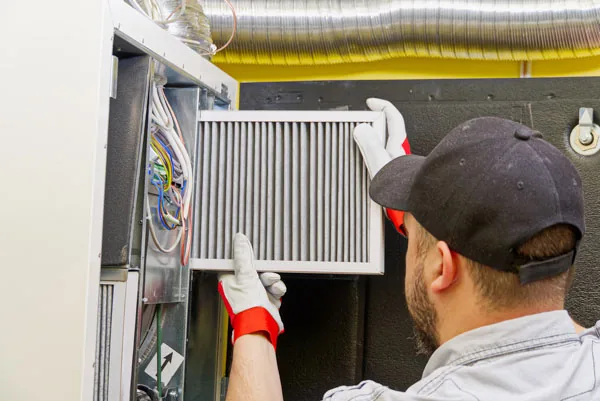

Regularly replacing air filters prevents dust buildup that chokes airflow and spurs overheating. Watching for sediment buildup or vent obstructions allows clearing hazards before crises escalate.

Maintaining clutter-free furnace areas ensures ventilation isn’t impeded. Promptly investigating abnormal noises raises red flags before component failures.

Minor details like wiping away dust, re-tightening loose wires, and periodically flushing drain lines all combine into comprehensive temperature regulation assurance.

With meticulous habits from both professionals and homeowners, you deploy a multi-layered defense against overheating issues. Potential failures get snuffed out, obstructions dissipate before strangling temperatures, and high limit switches remain on standby.

So stay vigilant with maintenance due diligence on all fronts. An ounce of prevention ensures your high limit protection stays in its weight class rather than emergency overheat overdrive.

Keeping Your Furnace’s Temperature in Check

When your furnace’s high limit switch is in a relentless tripping frenzy, it’s a blaring alarm that your heating system is operating under hazardous temperature conditions. Ignoring those persistent overheating episodes puts your home at risk of safety hazards like carbon monoxide leaks, excessive energy costs from inefficient cycling, and even potential fires from component failures.

Throughout this guide, you’ve been equipped with the know-how to troubleshoot common high limit tripping culprits – from airflow obstructions and mechanical wear, to complex electrical faults and systematic undersizing issues. You understand the vital role this switch plays as a thermal failsafe of last resort before situations turn catastrophic.

While some causes may be DIY-serviceable, other scenarios demand the skilled hand of a veteran HVAC professional. That’s where the experts at Snyder Air Conditioning, Plumbing, and Electrical can provide their trusted heating repair proficiency. Our technicians leverage the latest diagnostic tools and decades of experience to resolve even the most perplexing overheating challenges.

Don’t allow your furnace to reach its high limit for danger any longer. Take control of temperature regulation by calling Snyder at 904-747-3053 to schedule an assessment today. Restore safe, consistent heating for years to come.
